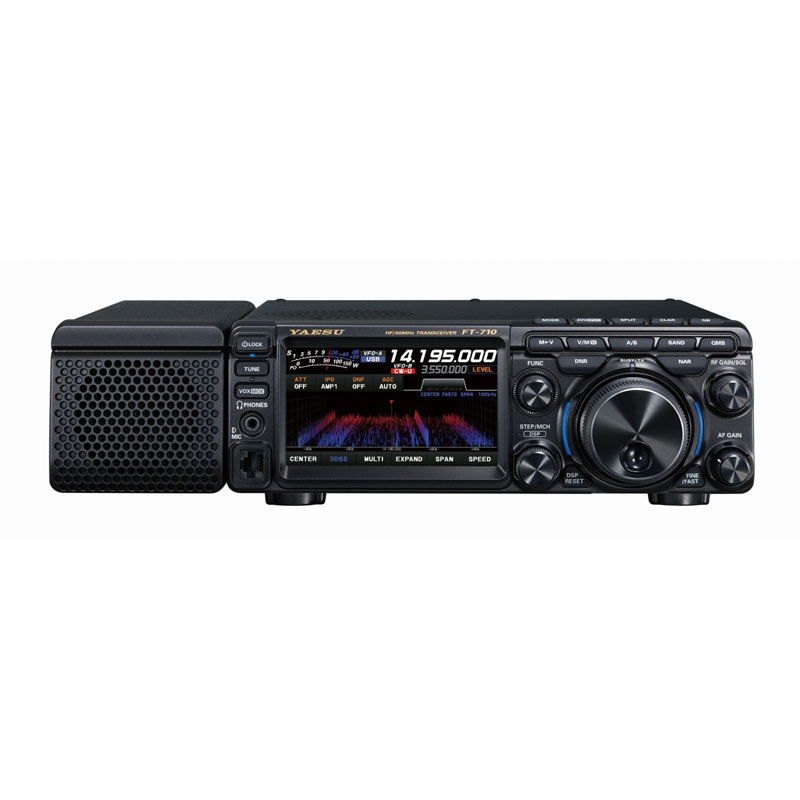

Yaesu FT-710 AESS (met losse speaker)
The Yaesu FT-710 AESS is a compact design yet provides 100W output, utilizing the advanced digital RF technology introduced in the FTDX-101 and FTDX-10 series.
Radio Features:
– HF/50MHz band 100W Compact SDR Transceiver
– SDR circuit configuration emphasizes Receiving Performance
which is enabled by the same high-resolution A/D converter and FPGA used in YAESU high-end SDR transceivers.
– Powerful RF Front-End and Low Noise Oscillator System enable Phenomenal Multi-Signal Receiving Characteristics*
・RMDR：113dB+ ・BDR：127dB+
・3rd IMDR：102dB+ ・TX Phase Noise： －143dBc/Hz
*Multi-Signal Receiving Characteristic: 14MHz band/2kHz separation *TX Phase Noise: 100W, CW mode
– Band-Pass-Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals
– Built-in High-speed Automatic antenna tuner with 100 channel memory
– Effective QRM rejection afforded by Dual-core 32-bit high speed floating decimal point DSP
– AESS (Acoustic Enhanced Speaker System) with the supplied SP-40 speaker to create High-fidelity audio output
– High Resolution 4.3-inch TFT Color Touch Panel Display
– 3DSS, real-time 3-Dimensional Spectrum Stream presentation
– VMI (VFO Mode Indictor) shows the current operating mode (VFO-A, VFO-B, Memory Mode and Clarifier/Split operation) at a glance
– “PRESET” Mode functions most suitable for FT8 operation
– Equipped with the External Display terminal (DVI-D)
– Two (2) USB Ports (Type-A and Type-B)
– SD Memory Card Slot
– Support the FC-40 Auto Antenna Tuner
– Remote Operation with Network Remote Control System (Available in the near future)
Supplied Accessories:

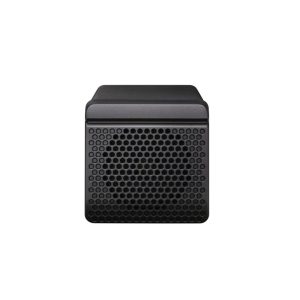

External Speaker SP-40
Microphone SSM-75E
DC Power Cable w/Fuse
Spare Fuse
Operating Manual
