SatRover QO100 144mhz Transverter

Name: SatRover QO100 144mhz Transverter
SKU: 24955
Price: 599.00 EUR
Availability: InStock

€599,00 Incl. BTW

SatRover QO100 144mhz Transverter

Sluit je Icom IC-705 of Yaesu FT-817/818 rechtstreeks aan op de deze SatRover transverter (144mhz naar 2.4ghz) en maak met 0.5W tot 4W insturing alle soorten verbindingen (FM-SSB-Digitale modes) op de QO100 satelliet.

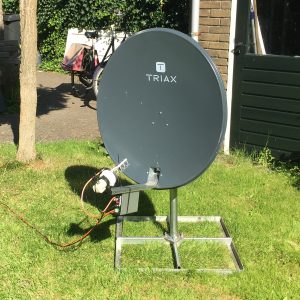

Je hebt slechts een 60 (of nog beter 90cm) schotel nodig en je kan in het veld bijna wereldwijd verbindingen maken.

Bestel nu en betaal pas zodra ze geleverd worden! Er worden er in december 50 stuks geproduceerd en door Hamshop uitgeleverd.

The use of this transverter is limited to licensed radio amateurs in countries where it is allowed to transmit in the 2,4ghz amateur band.
The SatRover is developed with simplicity in mind. The “Rover” in the name means it is intended to use on portable or “Rover” operation. Together with a portable 144mhz transceiver it is small enough to put in your backpack or with your camping gear. There is no need for a computer or internet connection.
Due to European regulation the radio amateur must do the final assembly their self.

Beschikbaarheid: Op voorraad

40 op voorraad

Shoppen bij Hamshop

Op werkdagen voor 15:00 besteld, dezelfde dag verzonden
Verzekerde verzending met PostNL
Levering aan bedrijven binnen de hele EU
Particuliere verkoop uitsluitend in BE & NL
Afhalen enkel op afspraak

Toevoegen aan verlanglijst

SatRover QO100 144mhz – 2.4ghz Transverter

Je hebt slechts een 60 (of nog beter 90cm) schotel nodig en je kan in het veld bijna wereldwijd verbindingen maken.

Bestel nu en betaal pas zodra ze geleverd worden! Er worden er in december 50 stuks geproduceerd en door Hamshop uitgeleverd.

The use of this transverter is limited to licensed radio amateurs in countries where it is allowed to transmit in the 2,4ghz amateur band.The use of this transverter is limited to licensed radio amateurs in countries where it is allowed to transmit in the 2,4ghz amateur band.

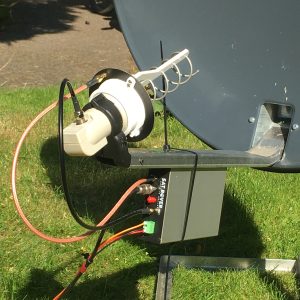

This transverter package contains the most parts to communicate via the QO100 narrow band geostationary satellite. To make your satellite ground station work. You must add the following parts:
• 12V power supply (or batteries) capable of 2A.
• Satellite offset dish reflector 60 to 90 cm diameter.
• 144MHz all mode transceiver what output power level can be reduced within a range of 0,5 to 4 Watt.
• Coaxial cable between 144 mhz transceiver and SatRover.

The SatRover is developed with simplicity in mind. The “Rover” in the name means it is intended to use on portable or “Rover” operation. Together with a portable 144mhz transceiver it is small enough to put in your backpack or with your camping gear. There is no need for a computer or internet connection.

YouTube uitleg over de Satrover, klik hier

Merk	SatRover
Categorie	Radio amateur

TX frequency range 2400.0 – 2400.5 MHz
TX frequency range 2400.0 – 2400.5 MHz
TX output power 4 Watt, 36 dBm
TX – IF frequency range 144.5 – 145.0 MHz
TX – IF recommended input power 2 Watt, 33 dBm
TX Heterodyne Single conversion

RX frequency range 10489.5 – 10490.0 MHz
RX – IF frequency range 144.5 – 145.0 MHz
RX Heterodyne Double conversion (first IF 649MHz)
RX conversion gain 40dB

RX dish feed LNB Scalar Horn
TX dish feed 5,5 turn Helix
Recommended dish 90 cm offset f/D 0,6

Frequency reference internal 10MHz OCXO
PTT control Contact close to ground, +12-5V over IF cable.
Supply voltage 10-13.8 V DC
Current consumption <2 A (TX) IF input-output / impedance SMA female 50 Ohm LNB input / impedance SMA female 50 Ohm 25.23MHz Ref output / impedance SMA female 50 Ohm RF output / impedance SMA female 50 Ohm TX cable Coax (sma-sma) RX cable Coax (F-sma) IF cable Coax (sma-?) not included

SatRover QO100 144mhz Transverter
