RigExpert Stick XPro

€629,00 Incl. BTW

Checking and adjusting antennas
Measurement of various parameters of cables feedlines, filters, and other
1/4-λ, 1/2-λ coaxial stubs setup
Finding cable fault
Factory calibration
Сolor TFT display
User-friendly interface
USB Type-C for PC
Bluetooth
16-hour runtime, one charge
Pocket-size
Splash and dustproof case
Operation temperature from -20° to 55°C

Beschikbaar via nabestelling

Iets langere levertijd

Shoppen bij Hamshop

Op werkdagen voor 15:00 besteld, dezelfde dag verzonden
Verzekerde verzending met PostNL
Levering aan bedrijven binnen de hele EU
Particuliere verkoop uitsluitend in BE & NL
Afhalen enkel op afspraak

Stick XPro is an antenna and cable vector analyzer. The analyzer allows you to measure various parameters of antennas, cables, lines, filters and many others in the frequency range from 0.1 to 1000 MHz

The Stick XPro analyzer has a compact size and lightweight, which is great for using the analyzer both in the home and in the field.

The main parameters of the Stick XPro analyzer:

Checking and adjusting antennas
Measurement of various parameters of cables feedlines, filters, and other
1/4-λ, 1/2-λ coaxial stubs setup
Finding cable fault
Factory calibration
Сolor TFT display
User-friendly interface
USB Type-C for PC
Bluetooth
16-hour runtime, one charge
Pocket-size
Splash and dustproof case
Operation temperature from -20° to 55°C

Merk	RigExpert
Categorie	Landmobiel, Radio amateur

Frequency range
0.1 to 1000 MHz

Frequency entry
1 kHz

Measurement for systems
12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm

SWR measurement range
1 to 10 in chart modes
1 to 100 in numerical modes
R and X range
0… 10000, -10000… 10000

Display modes
HAM (a quick check of single band antenna)
Multé (a quick check of multiband antennas)
OSL calibration mode
R, X chart
Return loss chart
Single (measure SWR, |Z|, R, X, C, L, RL, Mag&Phase)
SWR chart
TDR (distance to fault)
Сable tools (StubTuner, Cable Length, Impedance, Loss measurements)

RF output
Connector type: N
Output power: -10 dBm (at a load of 50 ohms)
Output signal shape: square

Power
One lithium-ion battery 3.7 V type 18650
When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Сharge time: 3 hours when using a charger

Interface
2 × 3 keys on the waterproof keyboard
290×220 color TFT display
Menus and help screens in English (by default), Japanese
USB connection to a personal computer

Operating temperature
-20°- 55°C (-4°-131°F)
Weight
185 grams (6.5 Oz) with battery

Dimensions
185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)

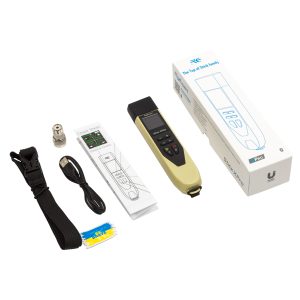

Accessories inside the box
Quick-start guide, Neck strap, USB cable, N-type to UHF adapter
GTIN-13
4820185420365

Note
Specifications are subject to change without notice
Мade in Ukraine
