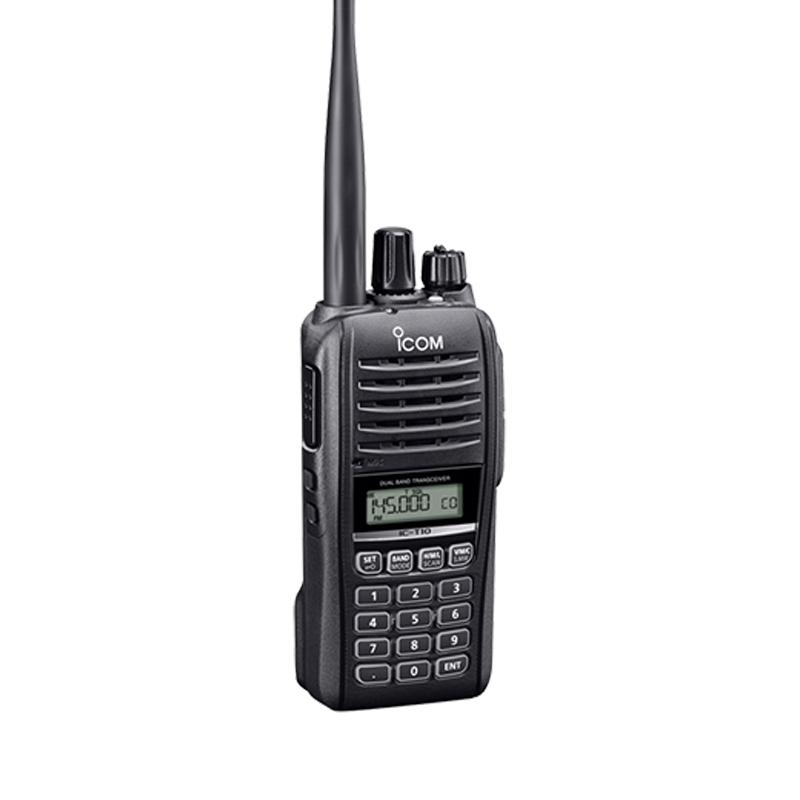

Icom IC-T10

GENERAL

• Frequency coverage (EUR Version)
  TX: 144–146, 430–440 MHz* (*Guaranteed range)
  RX: 136–174, 400–479 MHz* (* Working range)
• FM broadcast: 76–108 MHz
• Number of channels 208 channels (including 2 call and 6 scan edges)
• Type of emission F2D, F3E (FM)
• Frequency stability ±2.5 ppm (–20°C to +60°C on the basis of 25°C )
• Power supply requirement
• External DC power
• 7.2 V DC nominal
• 10–16 V DC (with AD-149H)
• Current drain (approximate) Tx High Less than 2.5 A
• Rx Max. audio Less than 600 mA
• Antenna impedance 50 O (SMA)
• Operating temperature range –20°C to +60°C
• Dimensions (W × H × D;
• Projections not included)
• 52.2 × 111.8 × 30.3 mm (with BP-280)
• Weight (approximate) 278 g (with BP-280 and antenna)

TRANSMITTER

• Output power 5 W, 2.5 W, 0.5 W
• Max. frequency deviation ±5.0 kHz/±2.5 kHz (W/N)
• Spurious emissions Less than –60 dBc (High, Mid),
• Less than –13 dBm (Low)

RECEIVER

• Receiver sensitivity Less than 0.18 µV (at 12 dB SINAD)
• Squelch sensitivity Less than 0.18 µV (at squelch threshold)
• Adjacent channel selectivity More than 55 dB (FM, 25 kHz)
• More than 50 dB (FM Narrow, 12.5 kHz)
• Spurious response More than 60 dB
• Audio output power
• (at 5% distortion, 8 O load)
• Internal SP 1500 mW (typical)
• External SP 450 mW (typical)
•  HM-222HLWP 1500 mW (typical)
• Ext. speaker connector 3-conductor 3.5 (d) mm (1/8″)/8 O
• All stated specifications are subject to change without notice or obligation.
