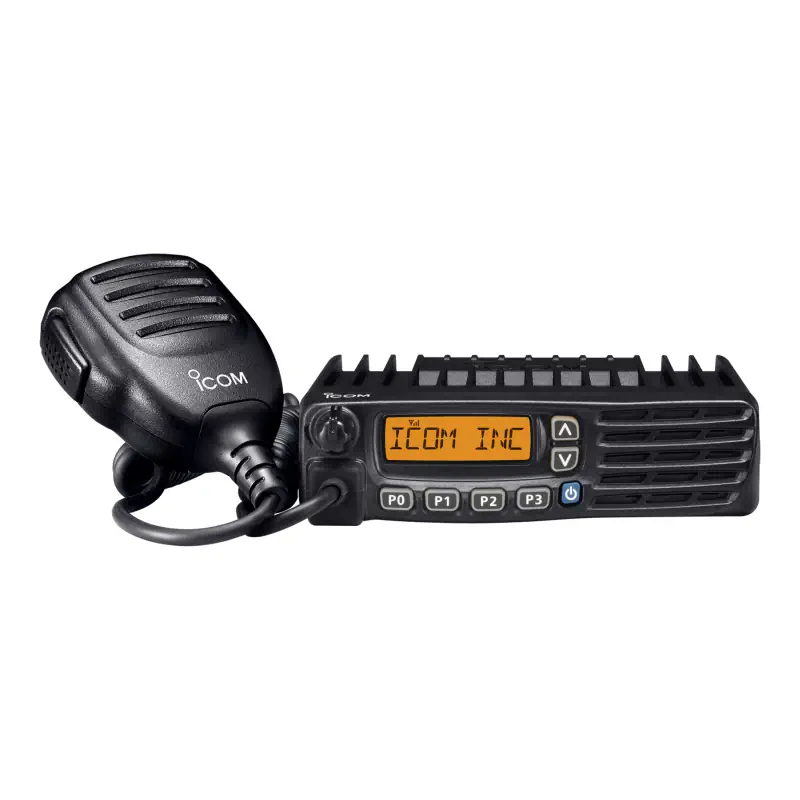

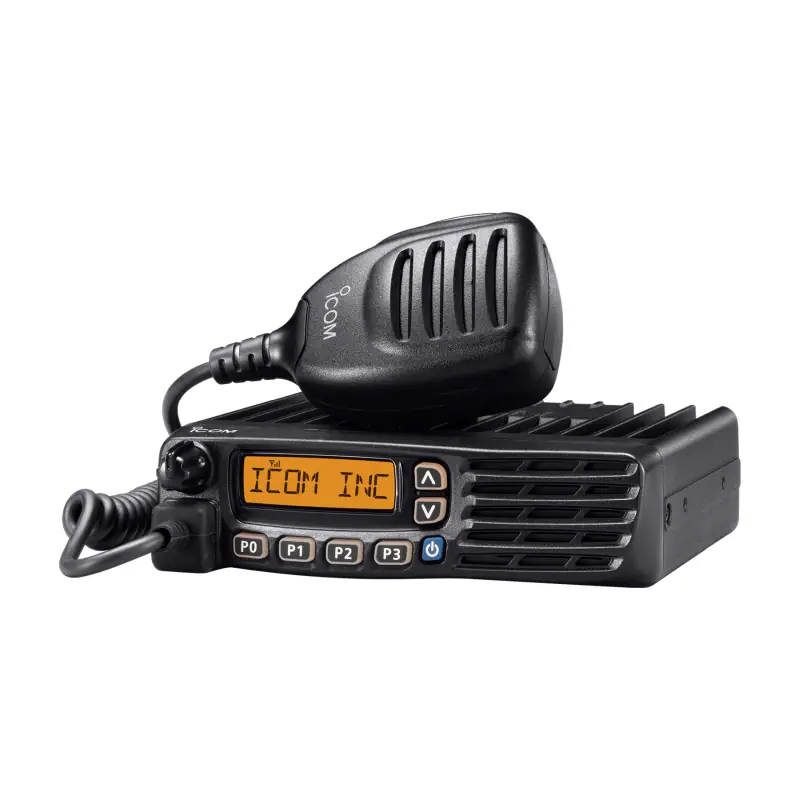

Icom IC-F6122D

128 channels with 8 zones
An ample 128 channel capacity allow most companies plenty of room to grow.
Up to 8 zones lets you group together channels in logical fashion.

Built military rugged!
The tough aluminum die-cast chassis and polycarbonate front panel have been tested to MIL standard 810F specifications.

Compact hand microphone
Select from 4 levels of mic gain, for clearer transmission.

GPS receiver connection

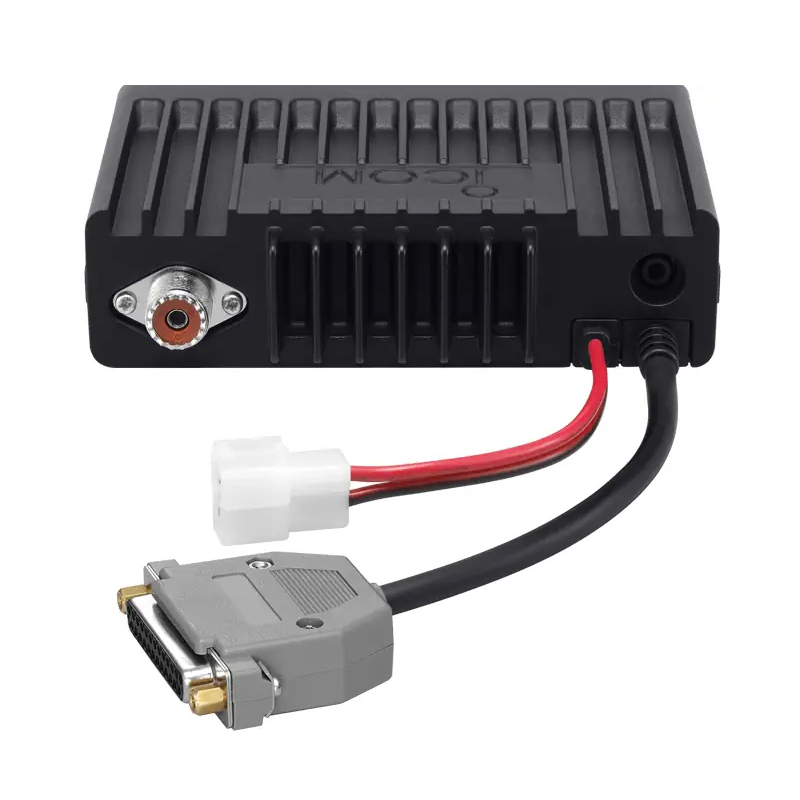

An external GPS receiver, PC or other device can be connected with the optional OPC-2078 (D-sub 25-pin) or OPC-1939 (D-sub 15-pin). Operating channels can be selected from an external device. (up to 16 preprogrammed channels).

Note：No Digital Modulation “IN” using accessory cables.

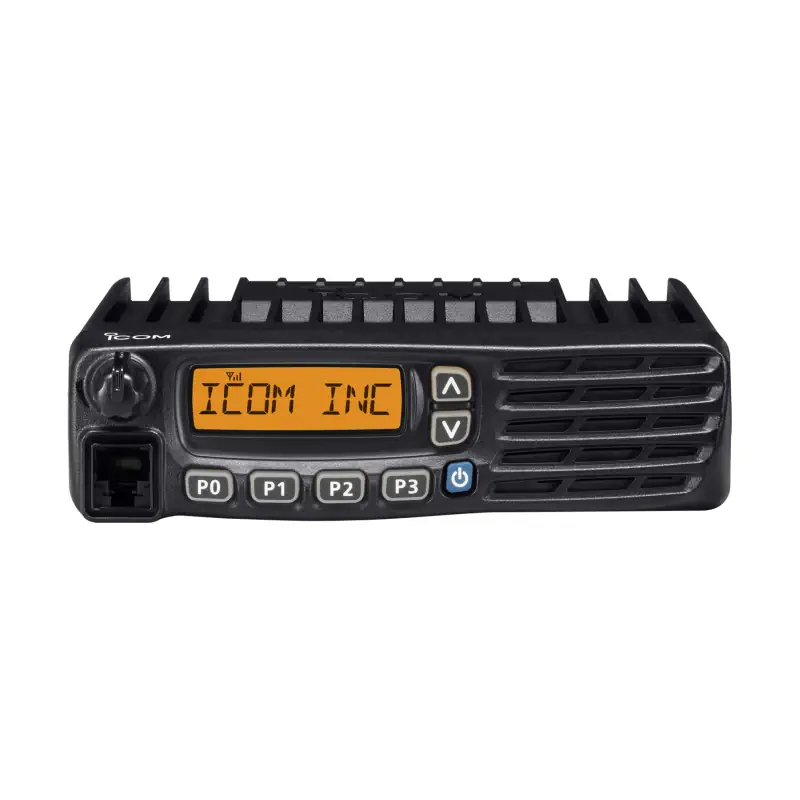

8-character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller’s name, received message, etc.

Large programmable buttons
Programmable P0-P3 buttons provide easy access to frequently used functions.
Buttons and LCD display are backlit for night time opeartion.

Powerful, front-facing speaker
4 watts (typ.) front facing speaker delivers clear and loud audio throughout a vehicle’s cabin. Digital modulation adds distinct clarity to received voices.

IDAS™ digital mode operation
The IC-F5122D series provides NXDN™ CAI-based IDAS™ digital mode operation. It is also compatible with IDAS™ multi-site conventional and IDAS™ single-site trunking. The following IDAS™ features are programmable.

PTT ID
Individual/Talkgroup list (Max. 500)
RAN (Radio Access Number)
Status
SDM (Short Data Message)
Call alert
Radio check (RX)
Stun/kill/revive (RX)
Remote monitor (RX)
Emergency (No ACK)
Digital voice scrambler
GPS data (PC and software required to show received position data)

Built-in 2-Tone and 5-Tone (Analogue mode)
2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions with programming. The stun/kill functions disable a radio over the air and the revive function restores the stunned radio.

MDC 1200 compatible (Analogue mode)
The following MDC features are available with the built-in MDC signaling.

PTT ID
Radio check (RX)
Emergency (No ACK)
Stun/Revive (RX)
500 alias table (Max.)
Scan features
The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The TX channel and talk back functions allow you to make a quick response while scanning.

Lone worker function
When the radio is not operated for a preset period, a warning beep will sound, alerting the radio user to check in. If the radio user does not check in before the preset time runs out, then the radio automatically sends out an emergency signal.

Optional Active Noise Canceling Microphone
The optional active noise canceling microphone HM-211 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio.

Other features
CTCSS/DTCS encoder/decoder*
BIIS PTT ID transmission*
8 DTMF autodial memories
Microphone hanger action programmable
Optional DTMF microphone (HM-152T/HM-148T)
PC programmable
Power-on password function
Time out timer
Talk around function
Nuisance delete function*
Forced narrow function*
* analogue only

TX: Transmit, RX: Receive
