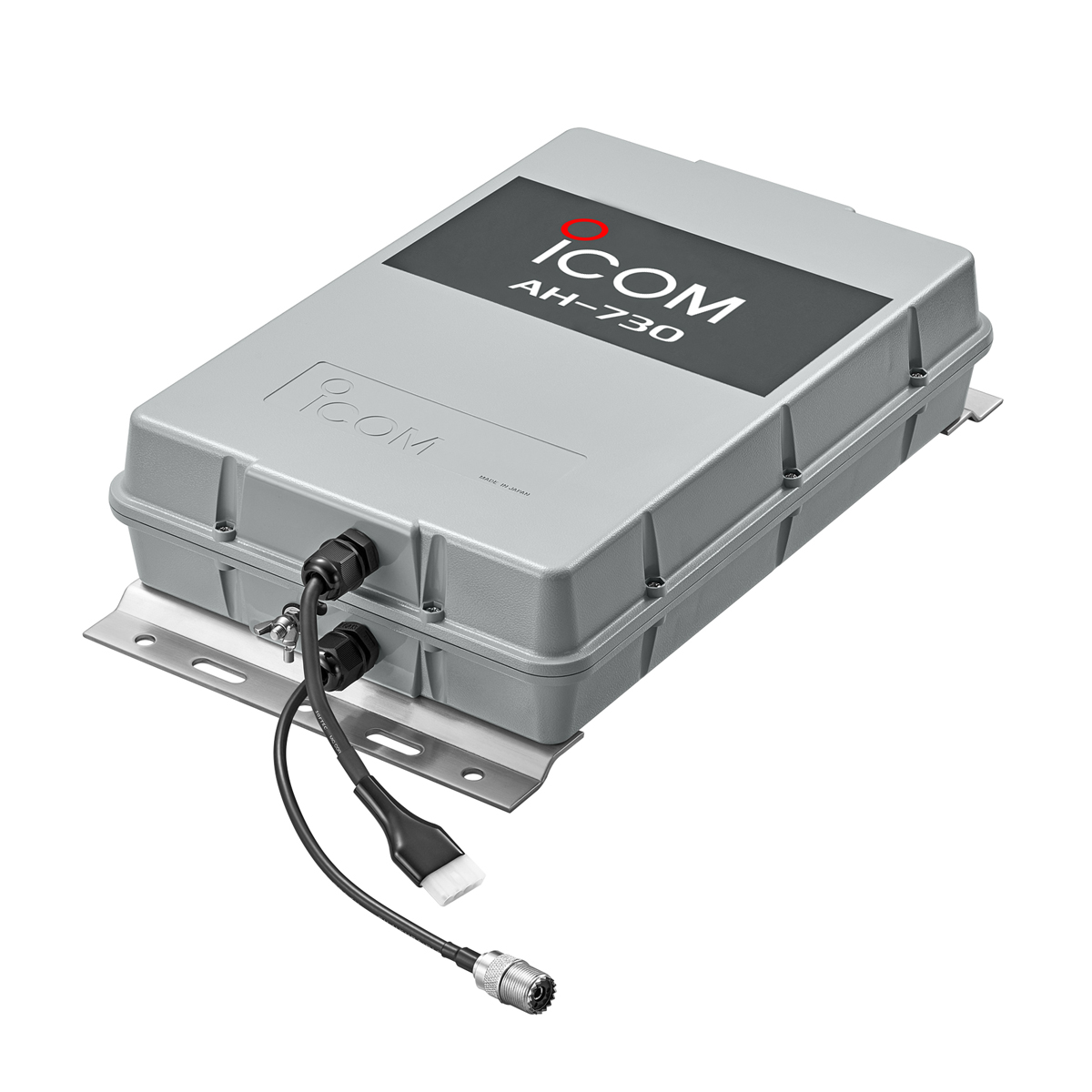

Icom AH-730

The new Icom AH-730 automatic amateur antenna tuner provides fast Tune-up from 1.8 to 50 MHz Band and is water resistant!

Wide Frequency Coverage
With a 7 m (23 ft) or longer wire element, all band matching is possible from the 1.8 MHz (160 m) band to the 50 MHz (6 m) band. Efficient for multi-band operation.
* A ground connection is required.

High Speed Tuning
The automatic tuning operation can be made at a high speed of about 2 to 3 seconds. It has 45 memories to store the minimum SWR settings. When re-tuning the same frequency, matching can be achieved in about 1 second.

Minimum RF Output for Tuning
The AH-730 emits only 0.3 W of RF output from the antenna during tuning operation. The low power minimizes the risk of interference to other stations while matching the antenna.

IPX4 Water Resistant
The tuner case uses a high-strength resin which protects internal parts from water, weather, and salt damage. The tuner is tested to IPX4 water splash protection. In addition, the coaxial cable and control cable can be easily connected without opening the case.

Supplied Accessories
Control cable (10 m, 32.8 ft)
Mounting kit (U-bolts and plates)
Weatherproof cap
