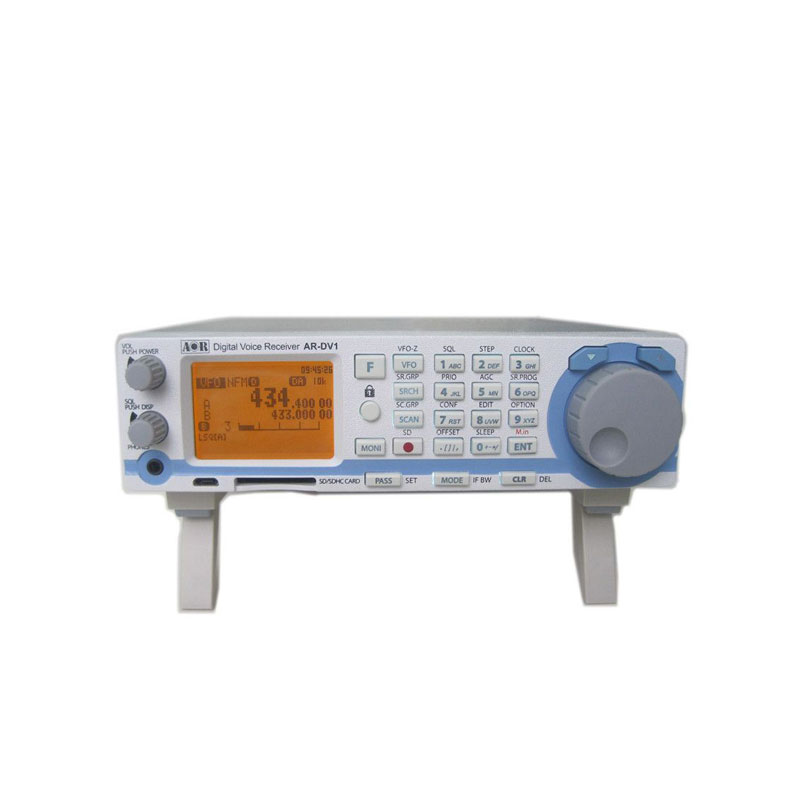

AOR AR-DV1

The AOR AR-DV1 wideband communications receiver covers 100 kHz to 1300 MHz (less cellular on U.S. consumer “B” version) in traditional analog modes (SSB, CW, AM, FM, S-FM, W-FM) as well as various digital modes. In fact, we know of no other radio in this category that can decode Icom’s D-Star mode, Yaesu’s new C4FM mode, Alinco’s digital mode, NXDN (note: 6.25 kHz only), P25 Phase 1, etc. Interesting features include:  2000 Memories (in 40 banks of 50), Memory Scan, AM Synchronous Detection, Noise Reduction, Notch, Digital Data Display, Clock, Calendar, Alarm, Timer. The SD/SDHC jack supports logging functions. There is also a micro USB port. This radio will support field firmware updating. High performance is achieved since the receiver employs direct conversion below 18 MHz and triple conversion superheterodyne above 18 MHz.

The AR-DV1 can be used with or without a computer.

Features:
– wide band coverage from 100kHz to 1300MHz*(less cellular on U.S. consumer “B” version)
– computer control for easier programming and monitoring operation
– a micro USB computer interface
– built-in SD/SDHC card reader for audio recording
– higher 1st IF frequency 1705 MHz provides higher image rejections
– CSV memory data capability for frequency uploads/ downloads and firmware updates
– 2000 memory channels (50 channels X 40 banks)
– alpha-numeric channel labels
– offset reception and priority channel selection
– auto-notch filter
– noise reduction
– voice inverter
– discriminator output
