| Electrical Specifications 6m | |
| Frequency Range: | 50 – 50.5 MHz |
| Free Space Forward Gain: | 14 dBi |
| Front to Back Ratio: | 32 dB |
| 3 dB Horizontal Beamwidth: | 37.2° |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 1500W |
| Matching Method: | Direct feed through common mode choke (current balun) |
| Connector: | “N” |
| Maximum Power Input Options (by order) | |
| “E” 7/16 DIN Input connector RG142 Teflon balun cable: | 2500 W (PA50-9-13DGE) |
| “EX” 7/16 DIN Input connector RG115 Teflon balun cable: | 8000 W (PA50-9-13DGEX) |

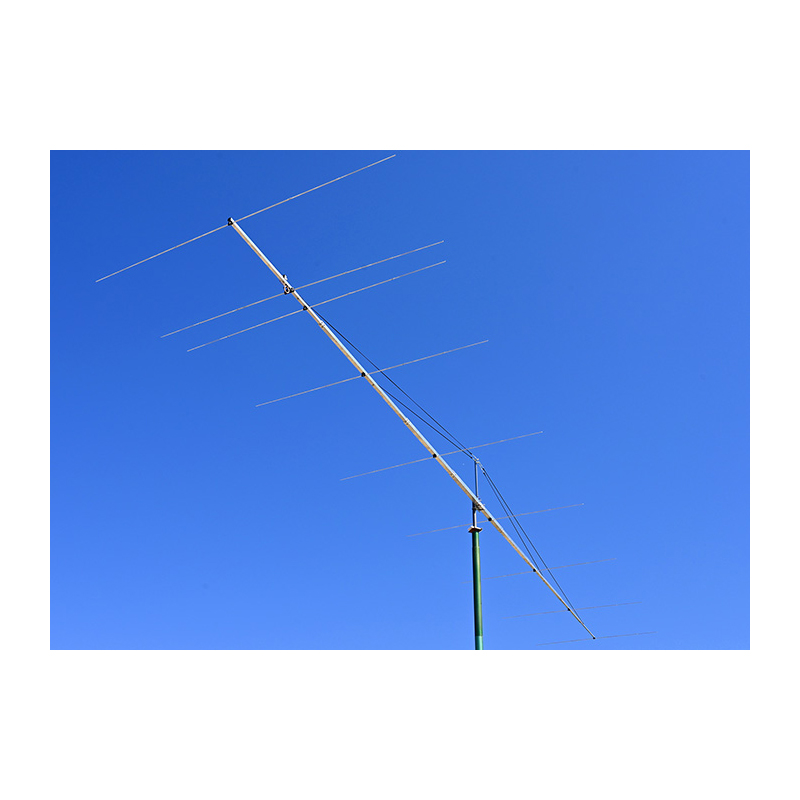

| Mechanical Specifications 6m | |
| Number of Elements: | 9 |
| Elements Diameter: | Tapered elements. Center tube 12mm, extensions 10 and 8mm |
| Dipole Diameter: | Tapered dipole. Center tube 12mm, extensions 10 and 8mm |
| Longest Element: | 3.1 m |
| Element Mounting Position: | Below the Boom |
| Balun and Connector: | Included |
| Boom Length: | 12.6 m |
| Boom Size: | Tapered Boom 60 x 60 mm, 50 x 50, 40 x 40, 30 x 30, 20 x 20 mm. |
| Number of Boom Pieces: | 8 |
| Guy rope support: | Yes, Included (4 pcs) |
| Mounting Mast Diameter: | 43 – 60 mm 1-1/4″ – 2″ |
| Clamp: | M10 Stainless Steel |
| Survival Wind Speed: | 150 km/h |
| Net Weight: | 19 kg |
| Gross Weight: | 22 kg |
| Transportation Length: | 2 m |
| Vertical Stacking Distance | |
| Two antennas 7800 mm | for F/S< -13.8 dB, Gain: 16.85 dBi |
| Two antennas 8600 mm | for F/S< -12.2 dB, Gain: 17.05 dBi |
| Horizontal Stacking Distance | |
| Two antennas 8600 mm | for F/S< -14.2 dB, Gain: 16.86 dBi |
| Two antennas 9600 mm | for F/S< -11.2 dB, Gain: 17.02 dBi |
