Dimensions of package adjusted to fit airplane “Checked baggage”. So sum of the baggage dimensions L+W+H is less than 158 cm or 62″. Weight 11.5 kg.
Package could fit almost any trunk – vehicle’s main storage compartment.
Easy assembling and disassembling. Everything marked and numbered:

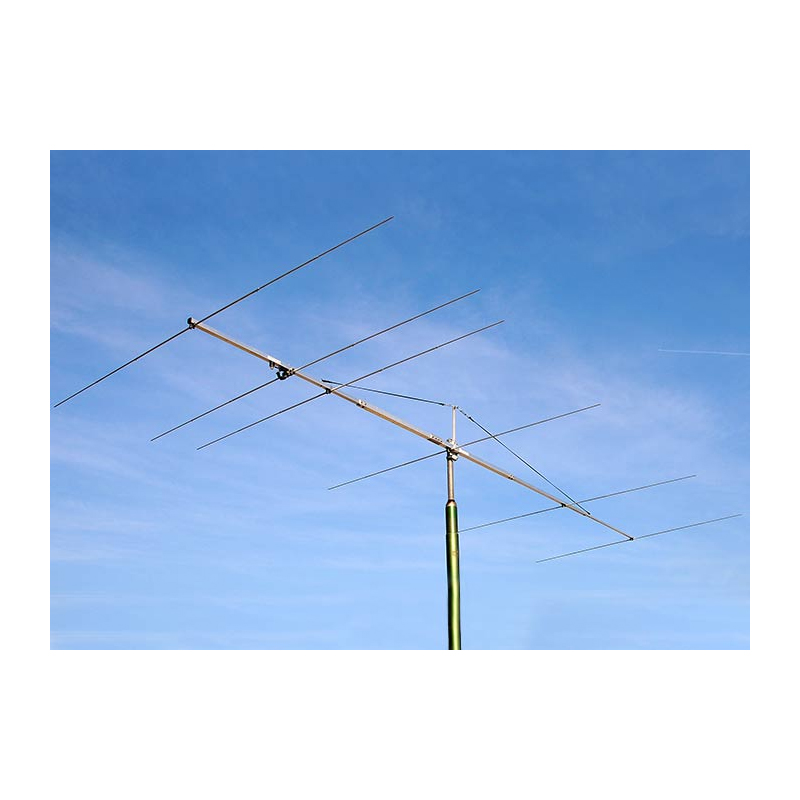

For 50MHz field day or expedition PA50-6-6A is a good choice.
| Electrical Specifications | |
| Frequency Range: | 50 – 50.5 MHz |
| Free Space Forward Gain: | 11.6 dBi |
| Front to Back Ratio: | > 25 dB |
| 3 dB Horizontal Beamwidth: | 46° |
| Nominal Input Impedance: | 50 Ohm |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 800 W |
| Matching Method: | Direct feed through common mode choke. |
| Connector: | “N” |
| Mechanical Specifications | |
| Boom length: | 5.9 m |
| Boom: | 40 x 40 mm |
| Longest element: | 3.1 m |
| No. of elements: | 6 |
| Element position: | Facing to the Earth |
| Turning radius: | 4 m |
| Mounting Mast Diameter: | 43-70 mm, 1-1/4″ – 2-3/4″ |
| Survival Wind Speed: | 150 km/h |
| Packed size length: | 1.2 m |
| Weight: | 11.5 kg |
| Vertical Stacking Distance for two antennas | |
| For F/S < -12.5 dB | 6.1 m. Gain 14.5 dBi (+2.9 dB) |
| Horizontal Stacking Distance for two antennas | |
| For F/S < -12.5 dB | 6.9 m. Gain 14.45 dBi (+2.85 dB) |
