| Electrical Specifications | |
| Frequency Range: | 1290 – 1310 MHz |
| Free Space Forward Gain: | 20.4 dBi |
| Front to Back Ratio: | 32 dB |
| 3 dB Horizontal Beamwidth: | 18° |
| 3 dB Vertical Beamwidth: | 18.4° |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 300 W |
| Matching Method: | Voltage balun. UT141 or similar Teflon cable |
| Connector: | “N” |
| Mechanical Specifications | |
| Number of Elements: | 36 |
| Element Diameter: | 4 mm Aluminum rod |
| Dipole Diameter: | 3 mm Copper |
| Longest Element: | 120 mm |
| Element Mounting Position: | Above the Boom |
| Balun and Connector: | Included |
| Boom Length: | 2.92 m |
| Boom Size: | 20 x 20 mm |
| Number of Boom Pieces: | 2 |
| Guy rope support: | No |
| Mounting Mast Diameter: | 32 – 50 mm 1″ – 1-1/2″ |
| Survival Wind Speed: | 120 km/h |
| Net Weight: | 1.75 kg |
| Gross Weight: | 3.65 kg |
| Transportation Length: | 1.5 m |
23cm 2458 km Distance Record Yagi Antenna 20.4 dBi PA1296-36-3BUT from VK7 to ZL
Â
PA1296-36-3BUT Low Noise Yagi Antenna Vertical Stacking Distance:
| Two antennas for F/S -13.6 dB | 650 mm |
| Gain: | 23.2 dBi |
Winning DX distance record Yagi Antenna PA1296-36-3BUT Horizontal Stacking Distance:
| Two antennas for F/S< -13.6 dB | 650 mm |
| Gain: | 23.2 dBi |
23cm Yagi Antenna 1296MHz Stainless Steel (Inox) Extended Bracket and Boom Join View 1296MHz
Â
Â

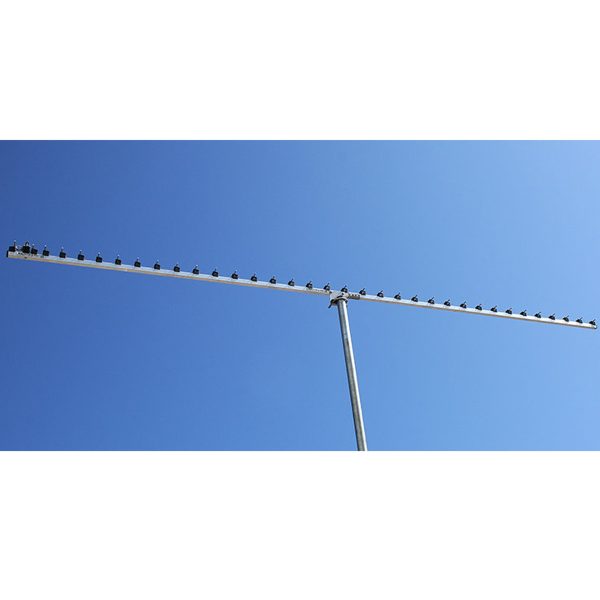

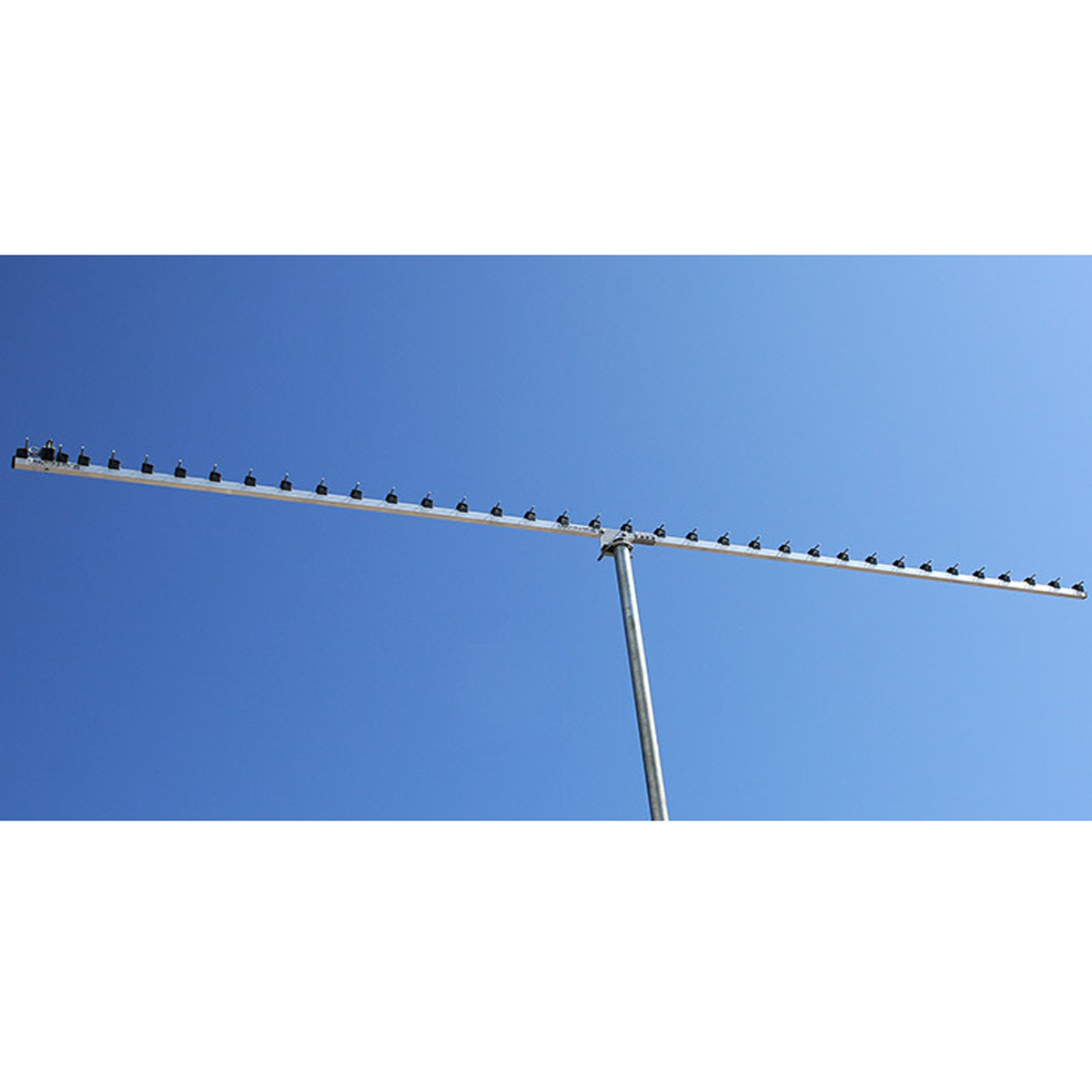

1296 MHz Super Gain Yagi Antenna 20.4 dBi PA1296-36-3BUT 36 elements appearance.
