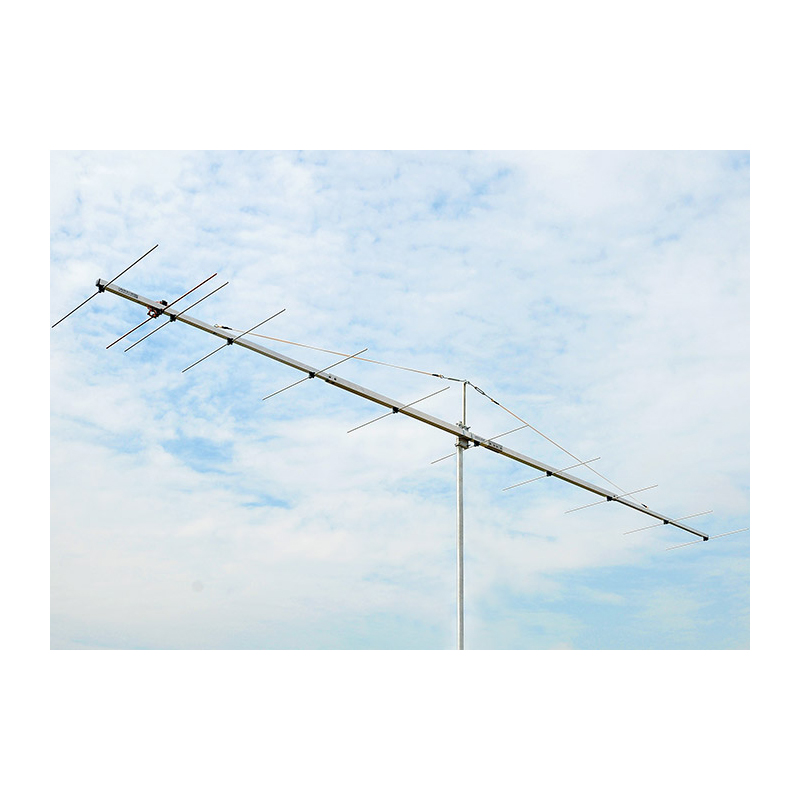

PA144-11-6BG 2m 11EL (1500W)

<table class="table table-bordered">
<tbody>
<tr>
<td><strong>Electrical Specifications 2 meter</strong></td>
</tr>
<tr>
<td>Frequency Range:<strong><br /></strong></td>
<td><strong>144 – 145 MHz</strong></td>
</tr>
<tr>
<td>Free Space Forward Gain:</td>
<td><strong>14.8 dBi</strong></td>
</tr>
<tr>
<td>Front to Back Ratio:<strong><br /></strong></td>
<td><strong>27 dB</strong></td>
</tr>
<tr>
<td>3 dB Horizontal Beamwidth:</td>
<td>35°</td>
</tr>
<tr>
<td>3 dB Vertical Beamwidth:</td>
<td>38°</td>
</tr>
<tr>
<td>G/T</td>
<td>tbd.</td>
</tr>
<tr>
<td>Polarization</td>
<td>Horizontal</td>
</tr>
<tr>
<td>Nominal Input Impedance:</td>
<td>50 Ohms</td>
</tr>
<tr>
<td>SWR Across Entire Band:</td>
<td><strong>< 1.2</strong></td>
</tr>
<tr>
<td>Maximum Power Input:</td>
<td><strong>More than 500 W</strong>, 1500 W available</td>
</tr>
<tr>
<td>Matching Method:</td>
<td>Direct feed through common mode balun</td>
</tr>
<tr>
<td>Connector:</td>
<td>"N"</td>
</tr>
<tr>
<td><strong>Mechanical Specifications 2 meter</strong></td>
</tr>
<tr>
<td>Number of elements:</td>
<td><strong>11</strong></td>
</tr>
<tr>
<td>Element Diameter:</td>
<td><strong>8 mm</strong> Aluminum tube</td>
</tr>
<tr>
<td>Dipole Diameter:</td>
<td><strong>8 mm</strong> Hard Copper tube</td>
</tr>
<tr>
<td>Longest element:</td>
<td>1040 mm</td>
</tr>
<tr>
<td>Element Mounting Position:</td>
<td>Below the Boom</td>
</tr>
<tr>
<td>Balun and Connector:</td>
<td>Included</td>
</tr>
<tr>
<td>Boom Length:</td>
<td><strong>5.72 m</strong></td>
</tr>
<tr>
<td>Boom Size:</td>
<td>40 x 40 mm + 30 x 30 mm</td>
</tr>
<tr>
<td>Number of Boom Pieces:</td>
<td><strong>4</strong></td>
</tr>
<tr>
<td>Guy rope support:</td>
<td><strong>Yes</strong></td>
</tr>
<tr>
<td>Mounting Mast Diameter:</td>
<td>43 – 70 mm 1-1/4" – 2-3/4"</td>
</tr>
<tr>
<td>Survival Wind Speed:</td>
<td>180 km/h </td>
</tr>
<tr>
<td>Transportation Length:</td>
<td>1.49 m</td>
</tr>
<tr>
<td>Antenna Weight:</td>
<td><strong>7.6 kg</strong></td>
</tr>
<tr>
<td>Gross Weight:</td>
<td> 9.7 kg</td>
</tr>
</tbody>
</table>
<div>
<p><img class="img-responsive" title="144 MHz 2 meter Low Noise Contest Antenna Low SideLobes" src="https://www.antennas-amplifiers.com/image/catalog/-antennas/144MHz/11-elements/PA144-11-6BG/2-meter-Low-Noise-Contest-Antenna-PA144-11-6BG.jpg&quot; alt="2 meter Low Noise Contest Antenna PA144-11-6BG" /><strong><br /></strong></p>
<p><strong>144 MHz Yagi Antenna with Boom length about 6 meter. 11 element Yagi Vertical </strong><strong>Stacking Distances for F/S -12.5 dB:</strong></p>
</div>
<table class="table table-bordered">
<tbody>
<tr>
<td>2 Antennas</td>
<td><strong>3.1</strong> m for Gain <strong>17.72 dBi (+2.92 dB)</strong></td>
</tr>
<tr>
<td>4 Antennas</td>
<td><strong>3.3</strong> m for Gain <strong>20.8 dBi (+6 dB)</strong></td>
</tr>
</tbody>
</table>
<div>
<p><strong>2 meter 11 element Yagi Antenna Horizontal Stacking Distances for F/S -12.5 dB:</strong></p>
</div>
<table class="table table-bordered">
<tbody>
<tr>
<td>2 Antennas</td>
<td><strong>3.3 m</strong> for Gain <strong>17.7 dBi (+2.9 dB)</strong></td>
</tr>
<tr>
<td>4 Antennas</td>
<td><strong>3.6 m</strong> for Gain <strong>20.8 dBi (+6 dB)</strong></td>
</tr>
</tbody>
</table>
<div>
<div>
<p><strong>PA144-11-6BG 2 meter 11 element Yagi Antenna in "H" frame. Two configurations. Max gain and low sidelobes for high noise urban area.</strong></p>
</div>
<table class="table table-bordered">
<tbody>
<tr>
<td>4 Antennas Max Gain</td>
<td><strong>H=3.25 m V=3.1 m for Gain 20.62 dBi (+5.82 dB)  for F/S -12.5 dB</strong></td>
</tr>
<tr>
<td>4 Antennas Low SideLobes (Urban)</td>
<td><strong>H=2.88 m V=2.75 m for Gain 20.15 dBi (+5.35 dB) for F/S -17 dB</strong></td>
</tr>
</tbody>
</table>
<p><strong>Low Noise antenna for VHF Contest on 144 MHz and EME work. 2 meter 144.1 MHz Azimuth Radiation Pattern.</strong></p>
<p><strong>Excellent gain and great suppression of all sidelobes. </strong><strong><br /></strong></p>
<p><img class="img-responsive" title="2 meter Contest EME Low Noise Yagi Antenna Azimuth Radiation Pattern 144.1MHz" src="https://www.antennas-amplifiers.com/image/catalog/-antennas/144MHz/11-elements/PA144-11-6BG/2meter-144MHz-Contest-EME-Low-Noise-Yagi-Antenna-Azimuth-Radiation-Pattern.png&quot; alt="2 meter 144MHz Contest EME Low Noise Yagi Antenna Azimuth Radiation Pattern" /><strong><br /></strong></p>
<p><strong>2 meter 144 MHz Contest EME Low Noise Yagi Antenna. Boom Join Detail Guy Rope Support.</strong></p>
<p><img class="img-responsive" title="144MHz Contest EME Low Noise Yagi Antenna Boom Join Detail Guy Rope Support" src="https://www.antennas-amplifiers.com/image/catalog/-antennas/144MHz/11-elements/PA144-11-6BG/2meter-144MHz-Contest-EME-Low-Noise-Yagi-Antenna-Boom-Join-Detail-Guy-Rope-Support.jpg&quot; alt="2meter 144MHz Contest EME Low Noise Yagi Antenna Boom Join Detail Guy Rope Support" /><strong><br /></strong></p>
<p><strong>11 element 144 MHz Contest antenna, Low noise pickup. Dipole, balun and "N" connector detail.</strong></p>
<p><img class="img-responsive" title="144 MHz 2 meter Low Noise Contest Antenna Dipole Current Balun Detail" src="https://www.antennas-amplifiers.com/image/catalog/-antennas/144MHz/11-elements/PA144-11-6BG/2-meter-Low-Noise-Contest-Antenna-Dipole-Current-Balun-Detail-PA144-11-6BG.jpg&quot; alt="2meter LowNoise Contest Antenna Dipole Current Balun Detail" /><strong><br /></strong></p>
<p><strong>Bracket and Guy Rope support view of PA144-11-6BG VHF </strong><strong>Terrestrial </strong><strong>Contest or EME Antenna.</strong></p>
<p><img class="img-responsive" title="2 meter antenna PA144-11-6BG bracket and Guy Rope Support" src="https://www.antennas-amplifiers.com/image/catalog/-antennas/144MHz/11-elements/PA144-11-6BG/2m-antenna-PA144-11-6BG-bracket-and-Guy-Rope-Support.jpg&quot; alt="2m antenna PA144-11-6BG bracket and Guy Rope Support" /><strong><br /></strong></p>
<p><strong>Another view of Low Noise High Gain Yagi antenna PA144-11-6BG.</strong></p>
<p><img class="img-responsive" title="2m Contest EME Low Noise Yagi Antenna 144MHz" src="https://www.antennas-amplifiers.com/image/catalog/-antennas/144MHz/11-elements/PA144-11-6BG/2meter-144MHz-Contest-EME-Low-Noise-Yagi-Antenna.jpg&quot; alt="2 meter 144MHz Contest EME Low Noise Yagi Antenna" /></p>
