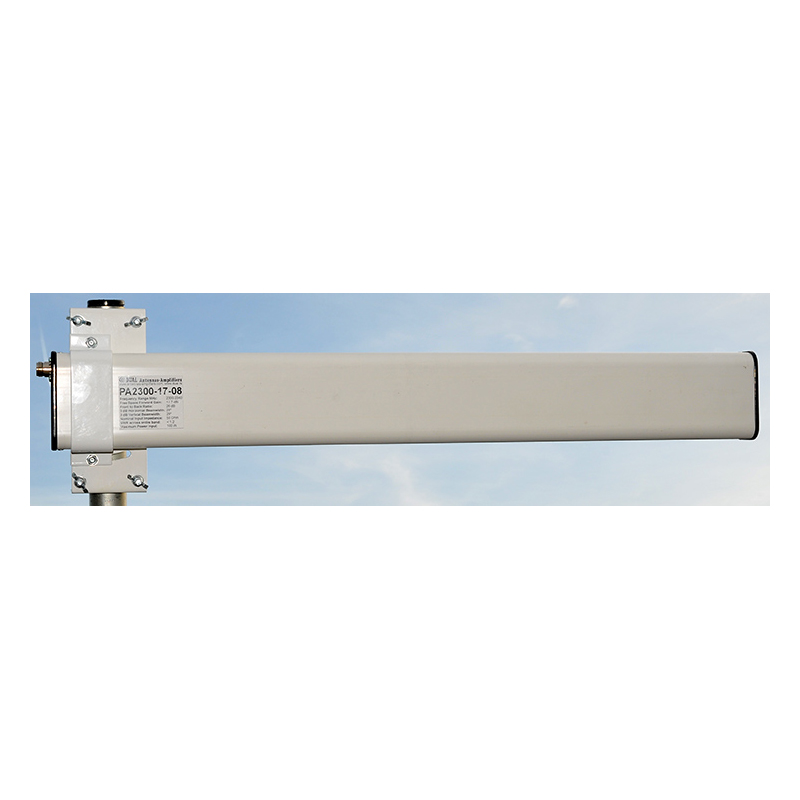

High Gain 2.3GHz Yagi antenna 2300 – 2320 MHz PA2300-17-08 in radome.
| Electrical Specifications | |
| Frequency Range: | 2300 – 2320 MHz |
| Free Space Forward Gain: | 16.7 dBi |
| Front to Back Ratio: | 26 dB |
| 3 dB Horizontal Beamwidth: | 28° |
| 3 dB Vertical Beamwidth: | 29° |
| Polarization: | Vertical |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 100 W |
| Matching Method: | RG316 Teflon Voltage Balun 1:4 |
| Connector: | “N” |
| Mechanical Specifications | |
| Radome Length: | 750 mm |
| Overall Length: | 770 mm |
| No. of elements: | 17 |
| Mounting Mast Diameter: | 1″ – 1-1/2″ 30 – 50 mm |
| Survival Wind Speed: | 120 km/h |
| Transportation Length: | 970 mm |
| Net Weight: | 1.3 kg |
PA2300-31-1.5 Measured characteristics with calibrated HP8753ES Network Analyzer:
Measured Return Loss with Radome at Finished Antenna:
Measured VSWR with Radome at Finished Antenna.
13cm – 2304MHz Yagi Antenna 2300MHz – 2340MHz
